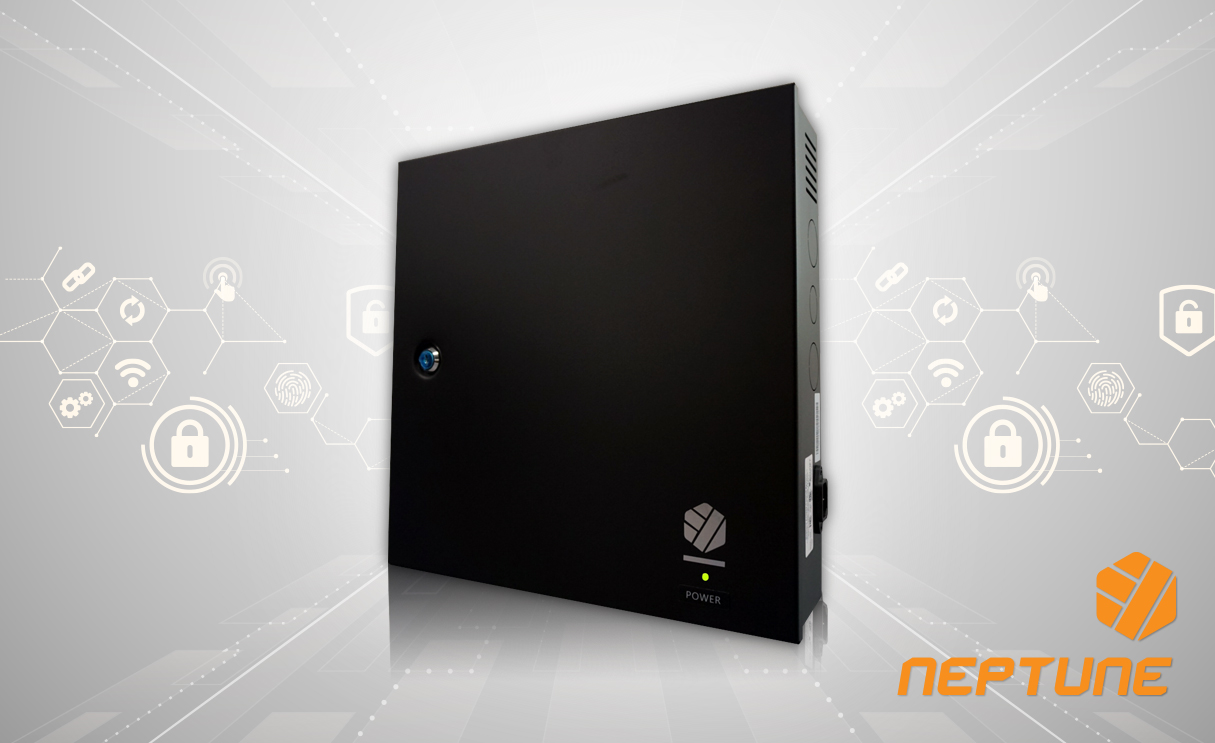

Affordable, Scalable

Access Control System

Neptune is a comprehensive embedded OS and browser-managed access control system.
Proven with tens of thousands of installations, Neptune systems are fast and easy to set-up, provide enhanced features and are scalability.
These feature-rich, self-contained access systems are designed for small & mid-sized applications where users need to
secure their facilities, manage access of personnel, create and analyze reports and remotely monitor their systems.
The Neptune Series comprehensive wizard is fast and intuitive, saving significant set-up time.

It’s Simple...with Impact

alt4 ITEM 이미지 Clickme to see inside

Smart and Powerful features

  • item1

    UL 294 Listed

  • item1

    Browser
    Managed

  • item1

    Cloud
    Management

  • item1

    Secure

  • item1

    Multiple User
    Privileges

  • item1

    Emergency
    Lockdown

  • item1

    Scalability

  • item1

    Low total cost
    of ownership

SMART & SIMPLE User Interface

alt4 ITEM 이미지
Neptune is a browser based access control platform that does not require a PC with dedicated software.
Out-of-the-box you can manage the system from your mobile device or any PC using your favorite browser.
Our easy to use interface enables easy set-up using the Wizzard and integrated tools for user data import.

Which NEPTUNE is right for you?

alt4 ITEM 이미지
“We have a solution to fit your needs and your budget. Our systems are scalable from one door, stand alone access control, to multi-door, multi-floor, multi-tenant access control. Combined with our video integration and cloud based mobile application, you will be able to securely manage and check on your facility everywhere and at any time of the day or night.”

“Small or large systems will benefit from our low total cost of ownership. No dedicated PC’s or servers are required. No special software to install or maintain. Modular hardware and upgradable software makes it easy to expand and maintain existing systems.”

  • item1

    Advantage

  • item1

    Professional

  • item1

    Corporate

Neptune 2DM

Components

  • Enclosure with IEC power cord

  • 2 Door Controller

  • Power Controller(12V)
    and battery backup

  • Integrated Power
    Supply(35W)

Neptune 2DMPL

Components

  • Enclosure with IEC power cord

  • 2 Door Controller

  • Power Controller with 12V & 24V Lock Power
    and battery backup

  • Integrated Power
    Supply(75W)

2Door Controllers may be expanded to 4 doors with
an optional field installed ACM module.
4 Door Controllers have the ACM installed at our factory.



Integrated lock power, battery back up and IEC cord.



Power Module Overview





    • 2 Door Controllers Specifications


    • System
      CPU Cortex A53, Quad-Core, 1.5GHz, 64 Bit
      Memory 1 GB, DDR3 plus
      8 GB eMMc
      OS Linux
      Database SQL
      Data Integrity End to End Encryption, SSL, AES256
      System Backup Each panel retains copy of database for data redundancy, SD Micro, FTP
      Network GB Ethernet
      microSD, USB 1X, 2x

    • Inputs
      Tamper Digital Input 1
      Power Fault Digital Input 1
      Supported Doors 2
      In Readers (Wiegand) 2
      Out Readers (Wiegand) 2
      REX Digital Inputs 2
      Door Position Digital Inputs 2
      Auxiliary Digital Inputs 2

    • Ratings
      Wiegand Reader Power (output) 12VDC @ 0.5 Amps, Fused
      Wiegand Reader Input Rating 0-5V DC with Transient Voltage Suppression
      Digital Input Rating 0-5V DC with Transient Voltage Suppression
      Door Lock Outputs / Form C Dry 2
      Door Lock Output Rating 24VDC @ 2.0 Amps
      Auxiliary Outputs / Form C Dry Contact 2
      Auxiliary Output Rating 24VDC @ 2.0 Amps
      Power Requirements 12VDC, 30 Watts / 60 Watts
