Affordable, Scalable
Access Control System
The Neptune systems is comprehensive embedded OS and browser-managed access control systems.
The proven Neptune systems delivers faster set-up, enhanced features, and scalability with tens of thousands systems installed.
These feature-rich, self-contained access systems are designed for small & mid-sized applications where users need to
secure their facilities, manage access of personnel, create and analyze reports, and monitor the system remotely.
The Neptune Series’ comprehensive wizard is fast and intuitive, saving significant set-up time.

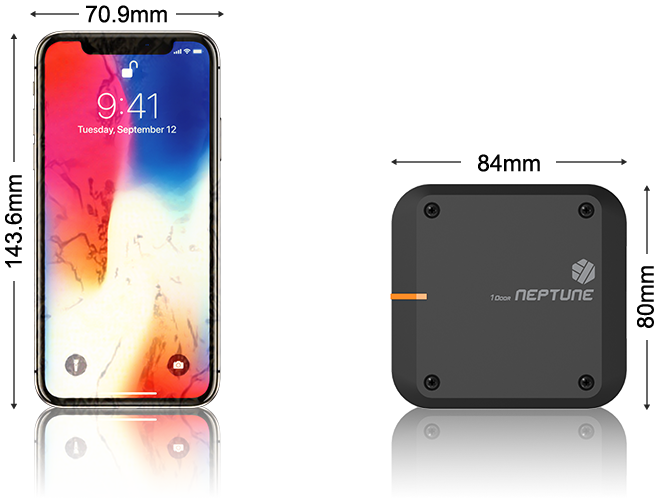

Small and Strong
It’s Compact.
Smart and Powerful features
Compact, but Impact.
-
UL 294 Listed
-
Browser
Managed -
Cloud
Management -
Secure
-
Multiple User
Privileges -
Emergency
Lockdown -
Scalability
-
Low total cost
of ownership
SMART & SIMPLE User Interface
Out-of-the-box you can manage the system from your mobile device or any PC using your favorite browser.
Our easy to use interface enables easy set-up using the Wizzard and integrated tools for user data import.
Which NEPTUNE is right for you?
“Small or large systems will benefit from our low total cost of ownership. No dedicated PC’s or servers are required. No special software to install or maintain. Modular hardware and upgradable software makes it easy to expand and maintain existing systems.”
-
Advantage
-
Professional
-
Corporate
Neptune 1DC
Components
-

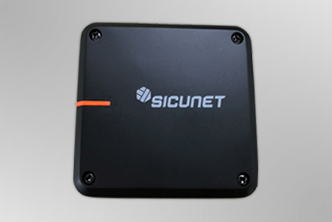

Main Body
-

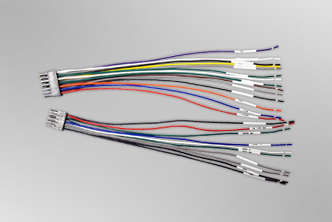

Power Cable / Data Cable
1 Door Controller
Enclosure Size (W x H x D) 3.2 x 3.0 x 1.3 in (81 x 78 x 32 mm)
-

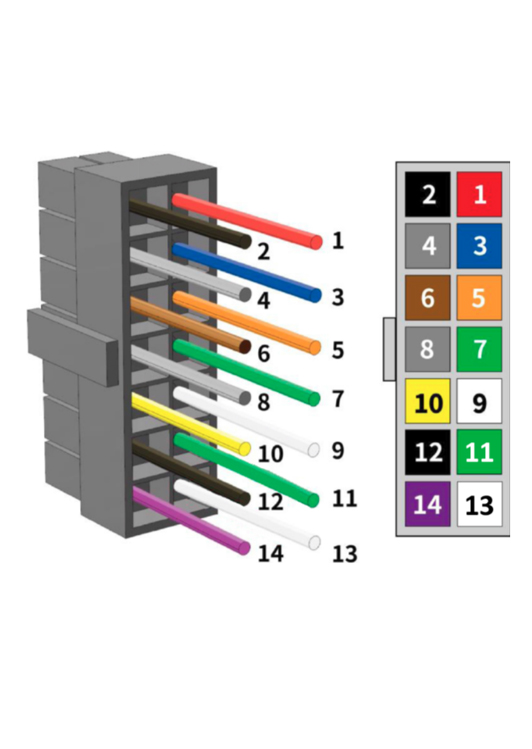

14 Pin Reader Harness Input Power PIN Color Description 1 RED +12 VDC Power for In & Out Readers 3 BLUE LED, In & Out Readers 5 Orange Buzzer, In & Out Readers 7 GREEN D0, In Reader 9 WHITE D1, In Reader 11 GREEN D0, Out Reader 13 WHITE D1, Out Reader 2 BLACK Ground, In & Out Readers Door Input 14 PERPLE Door Position Input 12 BLACK Ground 10 YELLOW Request to Exit Input System Input 8 GRAY AUX Input 6 BROWN Tamper 4 GRAY Power Fault 12 BLACK Ground -
-

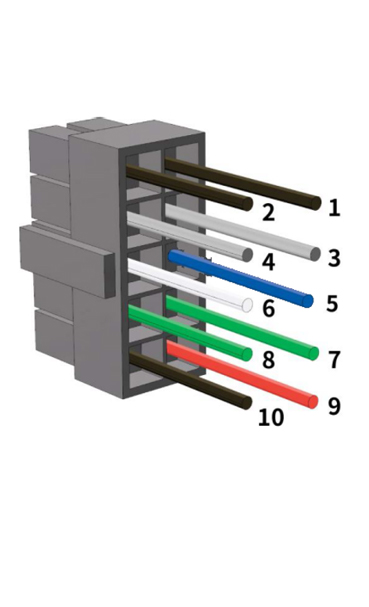

10 Position Power Harness Input Power PIN Color Description 10 BLACK Ground 9 Red +12 VDC @2A Door Output 7 GREEN Normally Colosed Dry Replay Contact 5 BLUE Common Replay Contact 3 GRAY Normally Colosed Dry Replay Contact Auxiliary Output 8 GREEN Normally Colosed Dry Replay Contact 6 WHITE Common Replay Contact 4 GRAY Normally Colosed Dry Replay Contact 2 BLACK Ground 1 BLACK Ground -
1 Door Controller Specifications
-
System CPU ARM Cortex A, Quad-Core Memory DDR3 plus OS Linux Database SQL Data Integrity End to End Encryption, SSL, AES256 System Backup Each panel retains a copy of database for redundancy,microSD, FTP Network GB Ethernet microSD, USB 1X & 2X -
Inputs Tamper Digital Input 1 Power Fault Digital Input 1 Supported Doors 1 In Readers (Wiegand) 1 Out Readers (Wiegand) 1 REX Digital Inputs 1 Door Position Digital Input 1 Auxiliary Digital Inputs 1 -
Ratings Wiegand Reader Power (output) 12VDC @ 0.5 Amps, Fused Wiegand Reader Input Rating 0-5V DC with Transient Voltage Suppression Digital Input Rating 0-5V DC with Transient Voltage Suppression Door Lock Output / Form C Dry Contact 12 VDC @ 0.5A, Fused Door Lock Output Rating 12VDC @ 0.5 Amps Auxiliary Output / Form C Dry Contact 12V DC @ 0.5A, Fused Auxiliary Output Rating 12V DC @ 0.5 A Power Requirement 12V DC, 24 Watts
